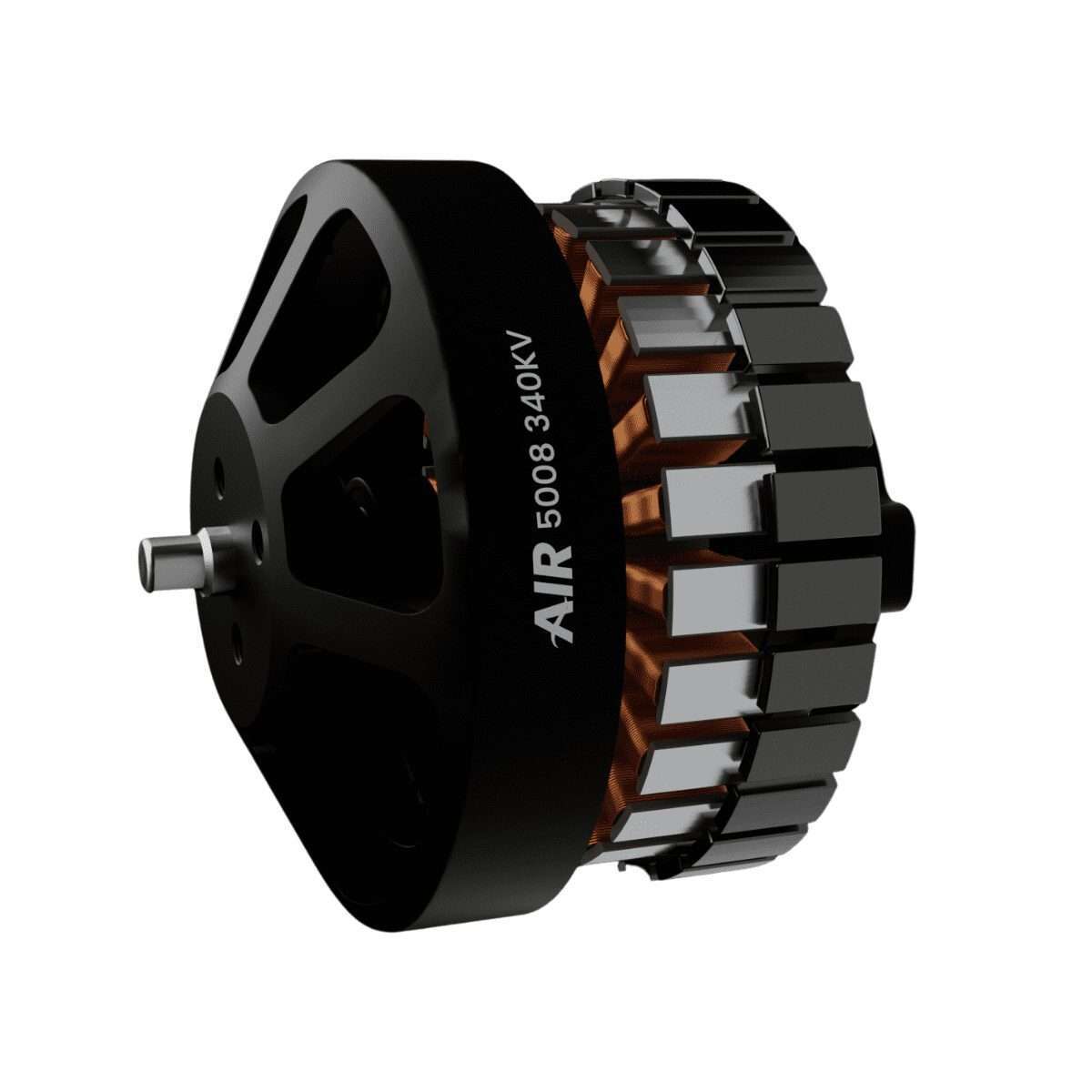

The AIR 5008 motor(Made In India) family is designed for professional UAVs requiring reliable propulsion, high thrust capacity, and smooth dynamic response. The motor produces up to 4.26 kg of thrust with peak power exceeding 730 W, making it suitable for cinematography, mapping, and industrial payload operations.
With an IP-rated thermal design and 150°C magnet and winding endurance, this motor ensures consistent performance under continuous operation. Each rotor is dynamically balanced to ≤5 mg, reducing vibration and enhancing flight control precision.
340KV variants provide optimised torque-speed characteristics to match diverse UAV setups—whether for endurance flights or responsive aerial manoeuvres.
Motor Details:
| Motor Size | D:56×30.7 mm |
|---|---|
| Propeller Mounting Holes | D:12 M3x2, D:18 M3x2 |
| Shaft Diameter | IN: 5 mm |
| IP rating | 45 |
| Varnished wire Degree | 180°C |
| Magnet Degree | 150°C |
| Rotor Balance | ≤5 mg |
| Motor Mounting Holes | D:25 M3x4 D:30 M3x4 |
Key Features
- Powerful Thrust Capability: With a maximum thrust of up to 4.26 kg, this ensures superior lift for medium to heavy payloads.
- Dual KV :
- 340KV: Designed for agile, responsive flight with higher RPM and enhanced acceleration—perfect for professional cinematography drones.
- High Thermal Endurance: 150°C-rated magnets and varnished copper windings ensure sustained operation under heavy loads.
- Precision Balance: Rotor dynamically balanced to ≤5 mg for vibration-free performance and accurate IMU readings.
- Durable Construction: CNC-machined aviation-grade aluminum housing for maximum structural integrity and cooling.
- Smooth Current Flow: Internal resistance of 66–80 mΩ ensures low heat buildup and stable current delivery.
- Broad ESC Compatibility: Works seamlessly with 40A ESCs (2–6S) featuring high-frequency PWM for fine throttle resolution.
- Flexible Propeller Support: Optimised for 13–18 inch propellers depending on KV variant and voltage setup.

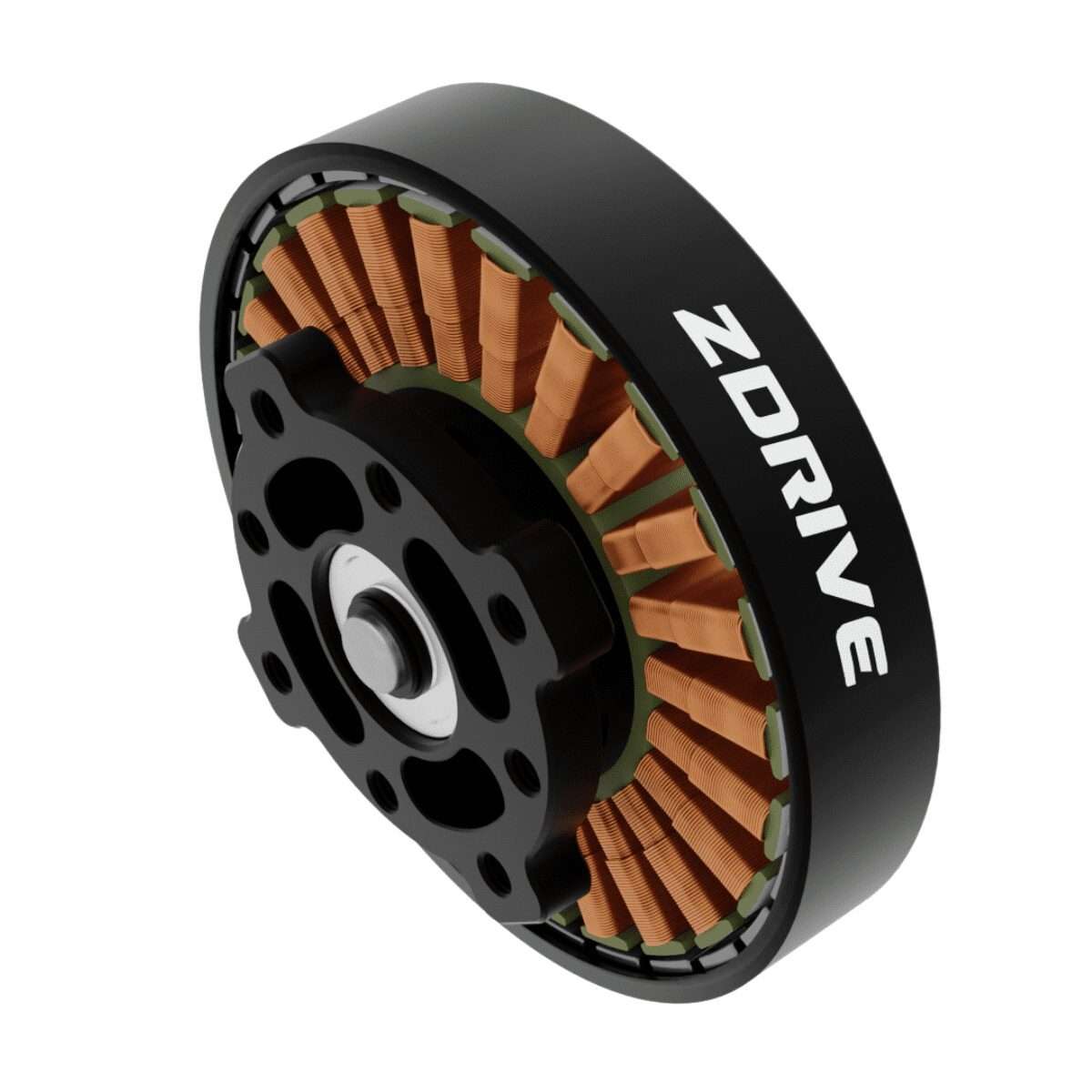

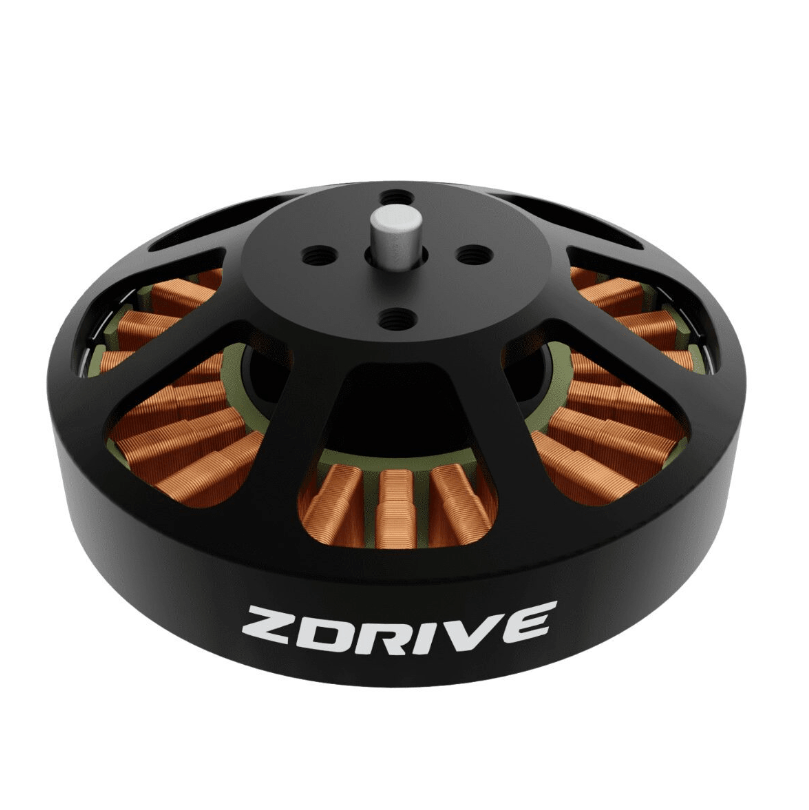

The AIR 5008 BLDC Motor is engineered for professional UAV platforms demanding high thrust, efficiency, and long operational life. With its 56×30.7 mm compact design, it balances lightweight construction with outstanding torque output—providing stable, vibration-free power for quadcopters, hexacopters, and octocopters.
Built from aerospace-grade materials, the AIR 5008 maintains smooth operation even under sustained workloads. Its precise magnetic alignment and low-noise bearing system deliver optimal stability and motor responsiveness, ideal for aerial mapping, inspection, and heavy-lift cinematography.
Whether used in performance-tuned builds (340KV), the AIR 5008 ensures reliable, efficient, and powerful flight under diverse mission profiles.
Build & Materials
Each AIR 5008 motor is built to uncompromising industrial and aerospace standards:
- CNC-machined aviation aluminum casing for rigidity and efficient heat dissipation.
- 180°C varnished copper windings for superior insulation and durability.
- Precision stainless steel bearings for ultra-smooth, low-resistance rotation.
- Epoxy-coated stator core for corrosion and humidity protection.
- Dynamically balanced rotors (≤5 mg) for consistent rotational accuracy and minimal vibration.
- IP35-equivalent protection against dust and light moisture.
Technical Tips for Optimal Performance
Maximise performance and reliability with these setup guidelines:
- Use 40A ESCs rated for high-frequency PWM (≥32 kHz) for responsive throttle control.
- 340KV variant: Performs optimally with 13–15 inch propellers on 6S LiPo for dynamic aerial work.
- Enable Active Braking (Damped Light) in ESC firmware for controlled descents.
- Mount motors with vibration-damping standoffs to protect sensitive flight sensors.
- Use 14–16 AWG silicone wires for efficient power transfer and minimal resistance.
- Conduct gradual throttle calibration tests to monitor temperature and current draw before full deployment.
Safety & Maintenance Tips
Ensure safe and reliable operation by following these care guidelines:
- Always balance propellers before flight to prevent vibration and bearing wear.
- Do not exceed rated current, thrust, or voltage limits to avoid overheating.
- Maintain adequate cooling airflow around the motor during prolonged operation.
- Inspect and clean bearings periodically with non-corrosive lubricants.
- Keep motor temperature below 80°C during continuous operation.
- Store motors in a dry, dust-free environment when not in use.
