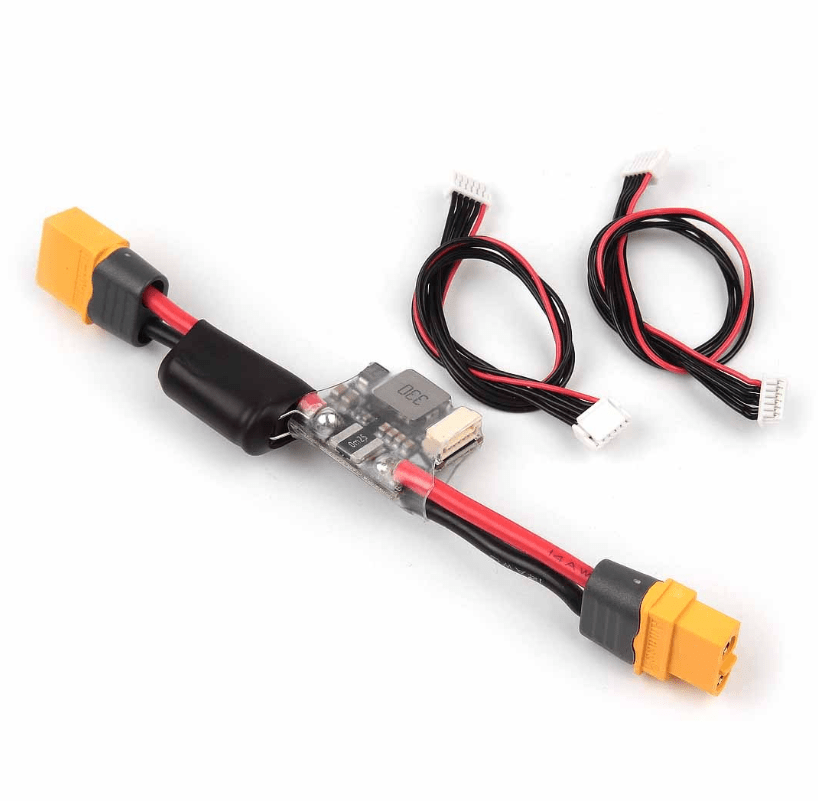

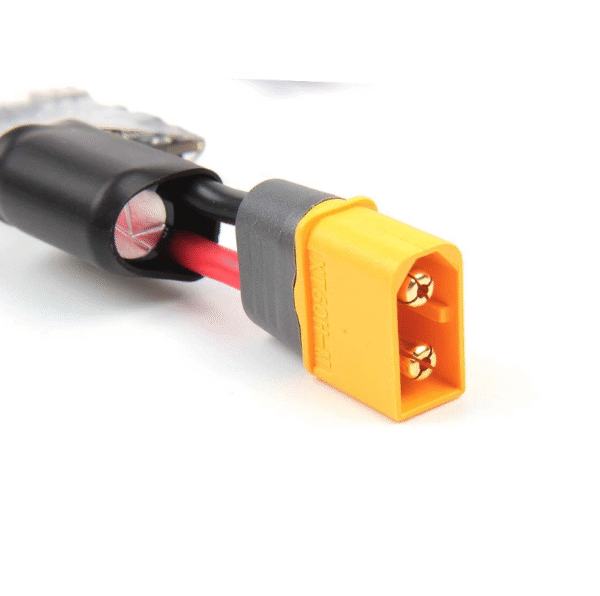

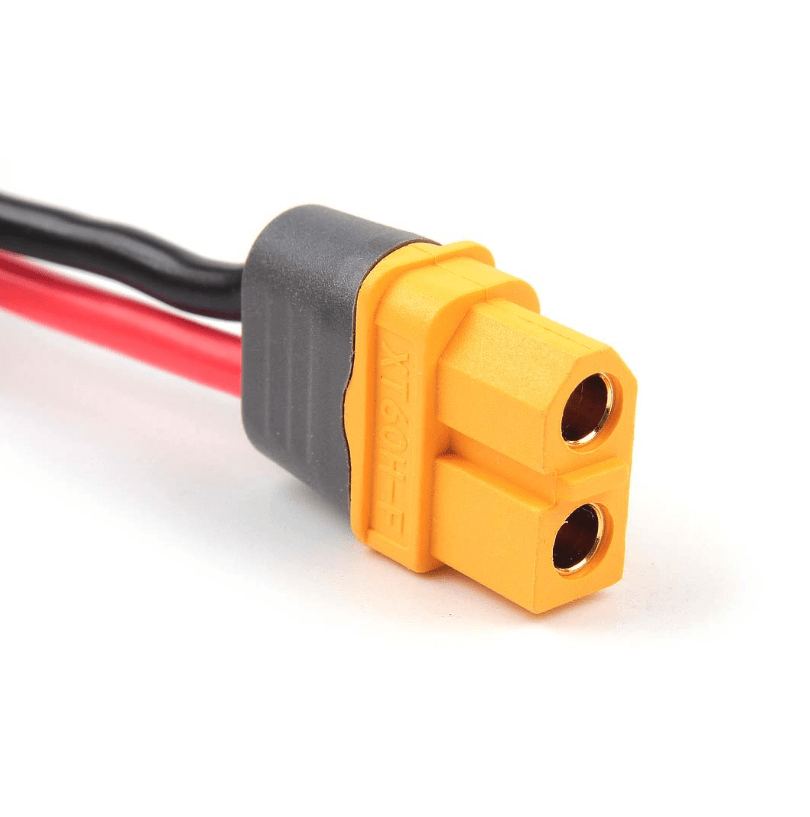

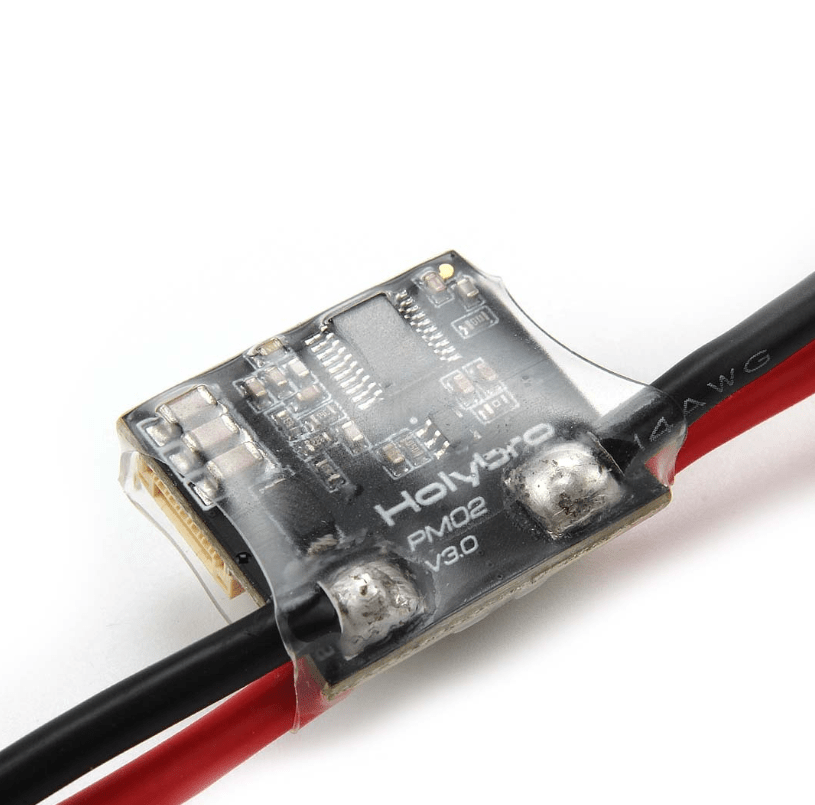

PM02 is a simple way of providing your APM and Pix32 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from up to a 12S LiPo battery. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.
The Power Module is designed to power APM,Pix32, a RC receiver and APM accessories (GPS, radio). It is not designed to power servos. Use your aircrafts own ESC/BEC for that.
TheGHterminalisalsocompatiblewithbothPix32,Pixhawk4,Pixhawk4miniandDurandal.
Note: This PM02 Power Module uses analog data outputand is not compatible to the Pixhawk 5X (Requires a digital PM like PM02D).
Features:
- Light weight
- Best for your DIY projects
- Easy to Use
Packages Includes:
1 x Holybro Power Module PM02
* Product Images are shown for illustrative purposes only and may differ from actual product.
