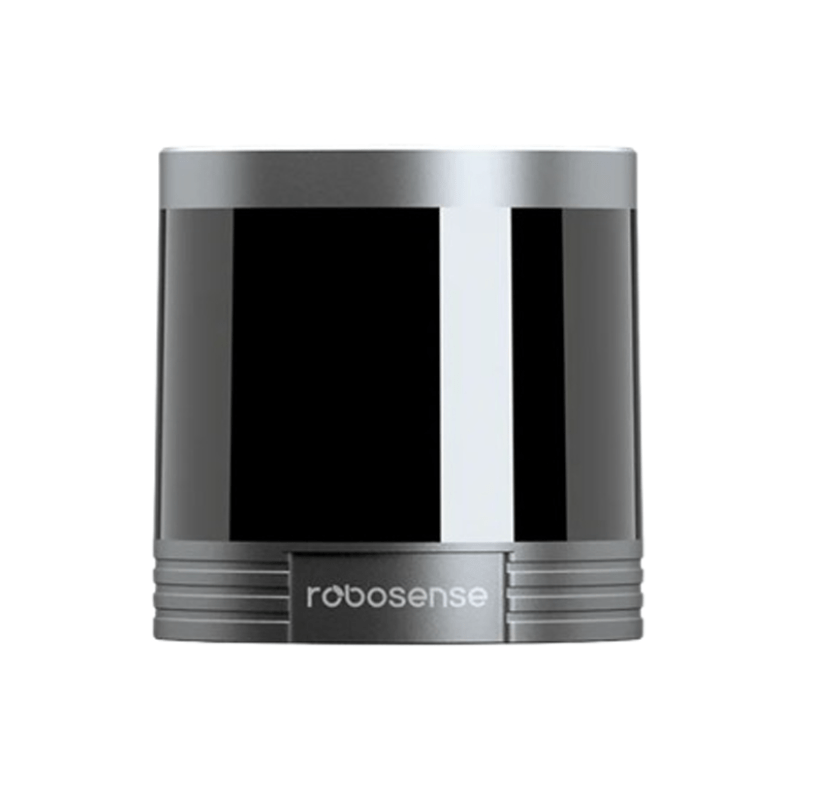

RoboSense Helios-32 H32F70 LiDAR Sensor, 70° FOV, 32 Lines, 905nm Range: 150m

The RoboSense Helios-32 H32F70 32-Line LiDAR Sensor  is a compact, ultra-reliable 32-beam 3D LiDAR designed for advanced robotics, autonomous vehicles, and intelligent transportation systems. Featuring a powerful 905 nm Class-1 eye-safe laser, it delivers up to 150 m detection range with outstanding 1 cm precision. Its 70° vertical FOV, high-resolution scanning (Up to 1.33°), and up to 1.15M points/sec ensure rich, detailed environmental perception.

Built with modular architecture, it is 29% smaller and 60% more cost-efficient than previous models. With IP67/IP6K9K protection, extreme-temperature durability, automotive Ethernet, multi-LiDAR anti-interference, and web-based monitoring, Helios-32 offers dependable performance in harsh real-world conditions.

Features:

1. Long-range detection: Up to 150 m (110 m at 10% reflectivity)
2. High-density point cloud: Up to 1.152M pts/sec dual return
3. Compact & cost-optimized: 29% smaller and 60% lower cost than RS-LiDAR-32
4. Customizable FoV & beam distribution for diverse applications
5. Advanced noise reduction for rain, fog, dust, and snow
6. High performance or low-power modes selectable
7. Automotive Ethernet (100Base-T1) for reliable data transmission
8. Excellent environmental resilience: IP67/IP6K9K, −40°C to 60°C operation

Useful Links:

//store.robosense.ai/products/helios-series?srsltid=AfmBOopRWGqZWgQBEI5AqFXdDiHd5P2DlRVGE97aODIOeauuSnKv1ZE9&variant=44365450018869

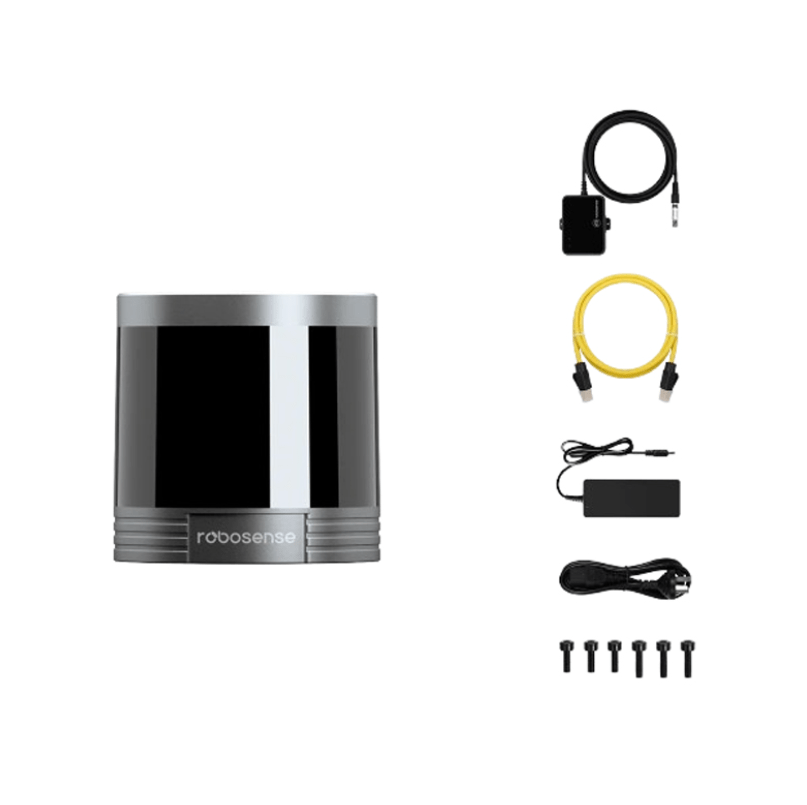

Package Includes:

1 x RoboSense Helios-32 LiDAR Sensor, 70° FOV, 32 Lines, 905nm Range: 150m

1 × Black Data/Power Cable (Automotive Ethernet)

1 × Black Extension Cable

1 × Yellow Automotive Ethernet Cable

1 × Power Adapter Module

1 × AC Power Cord

6 × Mounting Screws
