Home Drone Kits Sensors Benewake TFMini-S Micro LiDAR Distance Sensor for Drones UAV UAS Robots (12m) UART
Benewake TF02-Pro LIDAR Distance Ranging Sensor FOR DRONES UAV UAS Robots (40M) IP65 LiDAR
Benewake TF02-Pro LIDAR Distance Ranging Sensor FOR DRONES UAV UAS Robots (40M) IP65 LiDAR ₹6,999.00 Original price was: ₹6,999.00.₹6,799.00Current price is: ₹6,799.00. +18% GST
Back to products
SLAMTEC RPLiDAR C1M1-R2 Portable ToF Laser Scanner Kit – 12M Range
SLAMTEC RPLiDAR C1M1-R2 Portable ToF Laser Scanner Kit – 12M Range ₹8,299.00 Original price was: ₹8,299.00.₹7,899.00Current price is: ₹7,899.00. +18% GST

Benewake TFMini-S Micro LiDAR Distance Sensor for Drones UAV UAS Robots (12m) UART

₹4,699.00 Original price was: ₹4,699.00.₹4,109.00Current price is: ₹4,109.00. +18% GST

Compare
Add to wishlist
Category: Sensors
Share:
  • Description
  • Reviews (0)
  • Shipping & Delivery
  • Specifications
  • Attachments
Description

If you want to Detect any Obstacle but don’t know how to do it So, To overcome this problem, the only thing you should do is to get a Lidar sensor. Lidar is commonly used to make high-resolution maps, with applications in surveying, geodesy, geomatics, archaeology, geography, geology, geomorphology, seismology, forestry, atmospheric physics, laser guidance, airborne laser swath mapping (ALSM), and laser altimetry.

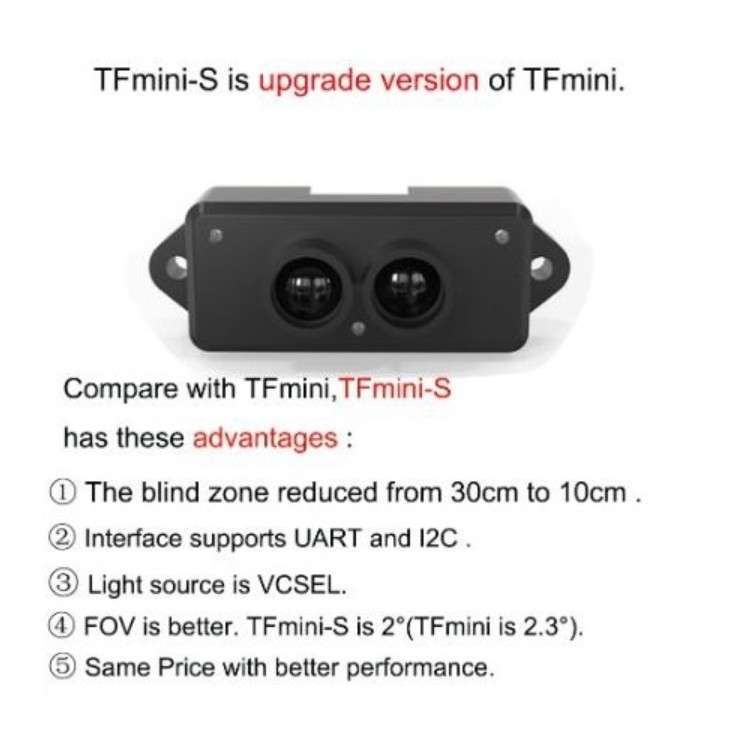

TFmini-S is a single-point ranging LiDAR based on the TFmini upgrade. The blind zone is shortened from 30cm to 10cm, the outdoor performance and accuracy of different reflectivity are improved. The distance range is not disturbed by ambient light, which can be consistent with the indoor range and the accuracy is further optimized. The error performance at 10% reflectivity approaches the background of 90% reflectivity, and the interface supports UART and I2C switching at any time. It can achieve stable, accurate, sensitive, and high-frequency range detection.

TFMini-S Micro LiDAR Distance Sensor

Note: This is the upgraded version of TF Mini.

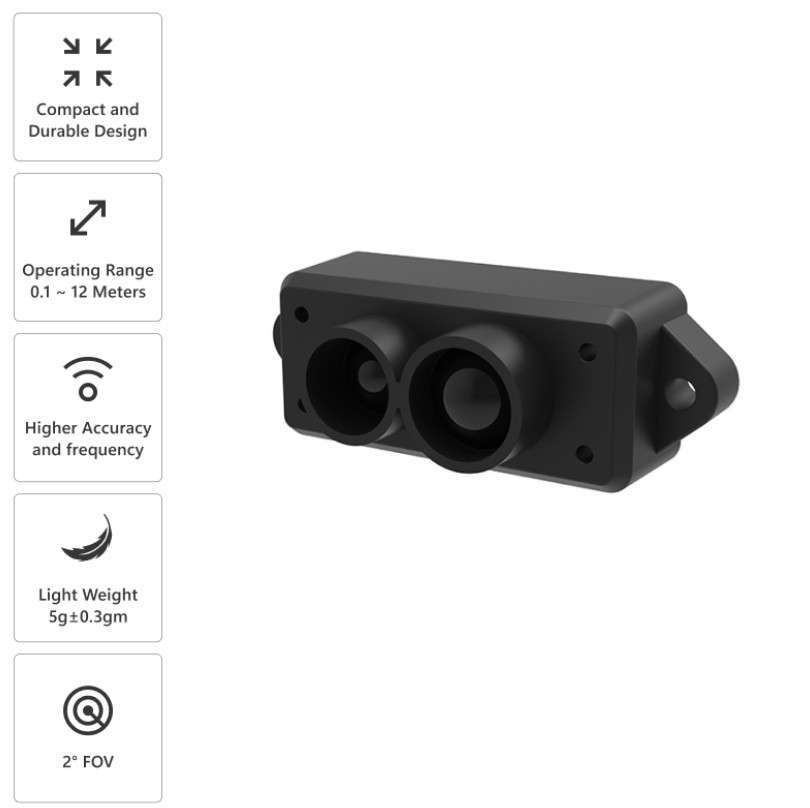

Features:

  1. Small size
  2. Lightweight
  3. Low power consumption
  4. High frame rate(up to 1000Hz)

TFMini-S Micro LiDAR Distance Sensor, Lidar, Distance Sesnor


Applications:

  1. Unidirectional ranging LiDAR.
  2. Obstacle avoidance.
  3. Assisted landing.
  4. Terrain following.
  5. Robots outdoor obstacle avoidance.
  6. Intelligent parking. Crane operations.
  7. Vehicle position sensing.
  8. Vehicle detection for barrier gate control.
  9. High-precision & High-speed measurement.
  10. Eye-safe infrared LED light.
  11. Compact size, lightweight.
  12. Good performance for height fixing and terrain-following drones.

Application Areas :

Benewake LiDAR application (3)Benewake LiDAR application (4)


Different LiDAR Modules Offered by ROBOSYNC BY ROBOKITS

The following table illustrates a comparison between the different LiDAR modules offered by us.

Parameters TF-Luna TFmini-S TFmini Plus TF Mini LiDAR
Operating Range 0.2m -8m
@90%reflectivity
0.1 m-12m
@90%reflectivity
0.1 m-12m
@90%reflectivity
0.3m-12m
5m@10%reflectivity
Frame Rate 1-125Hz 1-1000Hz 1-1000Hz 100Hz
Distance Resolution 1cm 1cm 1cm 1cm
Accuracy ±6cm@(0.2m-3m)
±2%@(3m-8m)
±6cm@(0.1 m-6m)
±1%@(6m-12m)
±5cm@(0.1m-5m)
±1%@(5m-12m)
1%(less than 6m)
2%(6m-12m)
FOV 2° 2° 3.6° 2.3°
Laser Wavelength 850nm 850nm 850nm 850nm
Light Sensitivity 70Klux 70 Klux 70 Klux 70,000lux
Output Data Single-point,
distance value
Single-point,
distance value
Single-point
distance value
Single-point
distance value
Communication Interface UART, I2C UART, I2C, I/O UART, I2C, I/O UART
Laser Safety Class Class1(IEC60825) Class1 (IEC60825) Class1 (IEC60825) FDA Class I

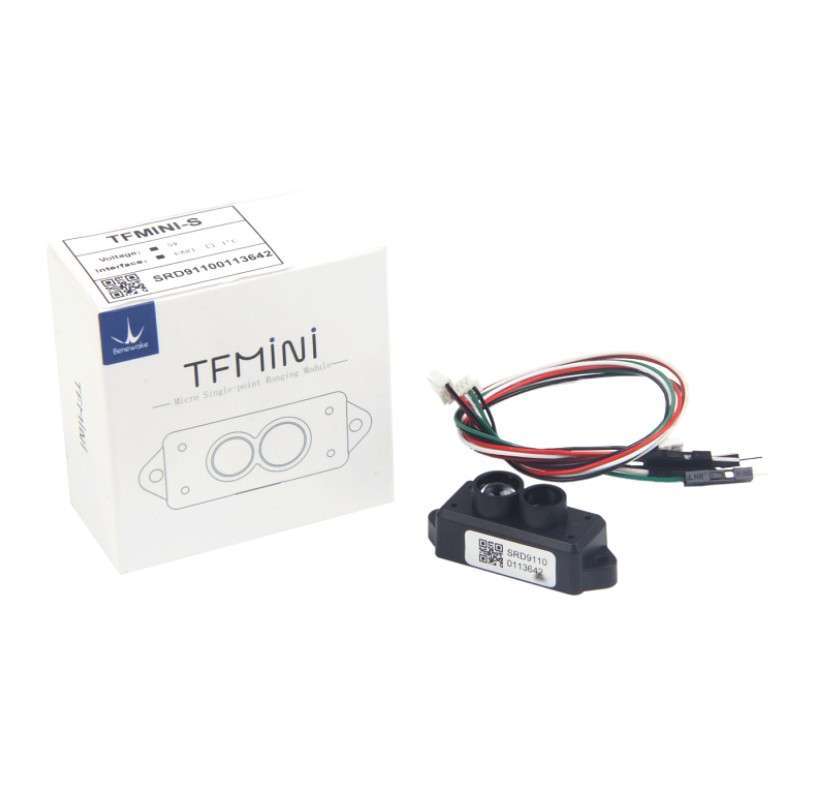

Package Includes:

1 x Benewake TFMini-S Micro LiDAR Distance Sensor for Drones UAV UAS Robots (12m) UART

1 x Cable

1 x QC card

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Benewake TFMini-S Micro LiDAR Distance Sensor for Drones UAV UAS Robots (12m) UART” Cancel reply

You must be logged in to post a review.

Shipping & Delivery
delhivery
download (1)
download
download

Normal Shipping-

We will ship your order within the 1-2 business day of confirmation of order.

We mostly use Fedex ,Delhivery, Xpressbees courier for shipping it's cover almost pincodes of india .

Remote Location-

In this case remote area we can ship your order using India Post.

So shop hassle freeeee!!!!!!!!!!!!!!!!!!!!!

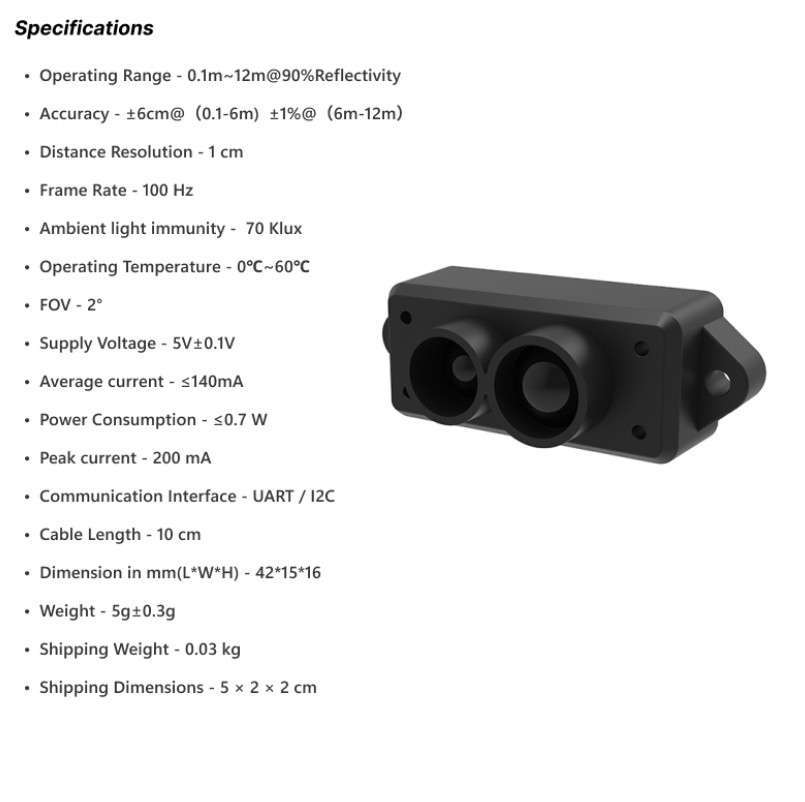

Specifications
Model: LiDAR Distance Sensor
Field of View (FOV): 2Deg.
Distance Measuring Range(M): 12
Operating Range 0.1m~12m@90%Reflectivity
Accuracy: ±6cm@(0.1-6m) ±1%@(6m-12m)
Distance resolution 1cm
Frame rate(Hz) 100
Ambient light immunity(Klux) 70klux
Operating Temperature (°C): 0°C~60°C
Supply Voltage (V): 5V±0.1V
Average Current(mA) ≤140mA
Power Consumption (W): ≤0.7W
Peak Current(mA) 200
Communication Interface UART / I2C
Cable Length (cm): 10
Dimensions (mm) : 42*15*16
Weight (g): 5g±0.3g
Shipping Weight 0.03 kg
Shipping Dimensions 5 × 2 × 2 cm
Attachments

TFmini-S-Datasheet (Click Here)
