Name: CUAV V5+ Flight Controller | Drone Autopilot PX4 APM
SKU: CUAV-00V5
Price: 32199.00 INR
Availability: InStock

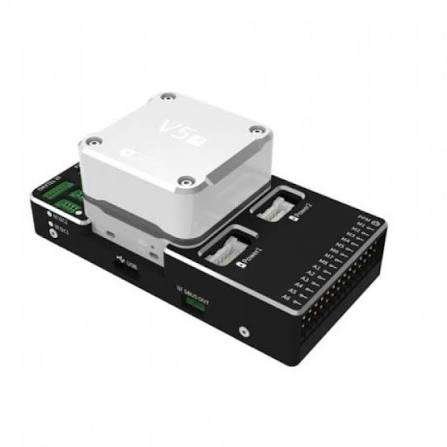

CUAV V5+ Flight Controller | Drone Autopilot PX4 APM

+18% GST

CUAV V5+ Flight Controller | Drone Autopilot PX4 APM Overview

The CUAV V5+ Flight Controller is a high-performance autopilot board designed for advanced drone platforms. Built on the Pixhawk FMUv5 standard, it delivers RTK centimeter-level positioning and robust sensor reliability for both commercial and research UAV applications.

Key Features of CUAV V5+ Flight Controller | Drone Autopilot PX4 APM

Supports RTK centimeter-level GNSS positioning for precise navigation
FMUv5 hardware design with detachable core for quick module swaps
BMI055 accelerometer and gyroscope for accurate motion sensing
Powerful STM32F765 processor with expanded Flash and RAM
Pixhawk standard pinouts enable easy integration with custom carrier boards
Compatible with PX4 and ArduPilot firmware for flexible flight control

5 in stock

Description

CUAV V5+ Flight Controller | Drone Autopilot PX4 APM

The CUAV V5+ Flight Controller, by CUAV®, is a state-of-the-art autopilot system crafted for sophisticated drone operations. It is built on the Pixhawk FMUv5 standard, providing a highly modular and customizable platform suitable for academic research and commercial integration projects.

Features:

Multi-Sensor Redundancy Combination
ICM-20689 Accelerometer & Gyroscope
ICM-20602 Accelerometer & Gyroscope
Built-in patented damping system
Detachable CORE Design
MS5611 Barometer
IST8310 Compass
PX4 Autopilot

For more information click Below

ardupilot.org/copter/docs/common-cuav-v5plus-overview.html

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “CUAV V5+ Flight Controller | Drone Autopilot PX4 APM”

You must be logged in to post a review.

Shipping & Delivery

Normal Shipping-

We will ship your order within the 1-2 business day of confirmation of order.

We mostly use Fedex ,Delhivery, Xpressbees courier for shipping it's cover almost pincodes of india .

Remote Location-

In this case remote area we can ship your order using India Post.

So shop hassle freeeee!!!!!!!!!!!!!!!!!!!!!

Specifications

Main FMU Processor	STM32F765 (32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM)
IO Processor	STM32F100 (32 Bit Arm® Cortex®-M3, 24MHz, 8KB SRAM)
On-board sensors	Accelerometer/Gyroscope: ICM-20689 Accelerometer/Gyroscope: BMI055 Magnetometer: IST8310 Barometer: MS5611
Power	4.3~5.4V
USB Input	4.75~5.25V
Servo Rail Input	0~36V
Interfaces	8-14 PWM outputs (6 from IO, 8 from FMU) 3 dedicated PWM/Capture inputs on FMU Dedicated R/C input for CPPM Dedicated R/C input for PPM and S.Bus analog / PWM RSSI input S.Bus servo output 5 general-purpose serial ports 4 I2C ports 4 SPI buses 2 CANBuses with serial ESC Analog inputs for voltage/current of 2 batteries
Dimensions	85.54233mm
Weight	90g
