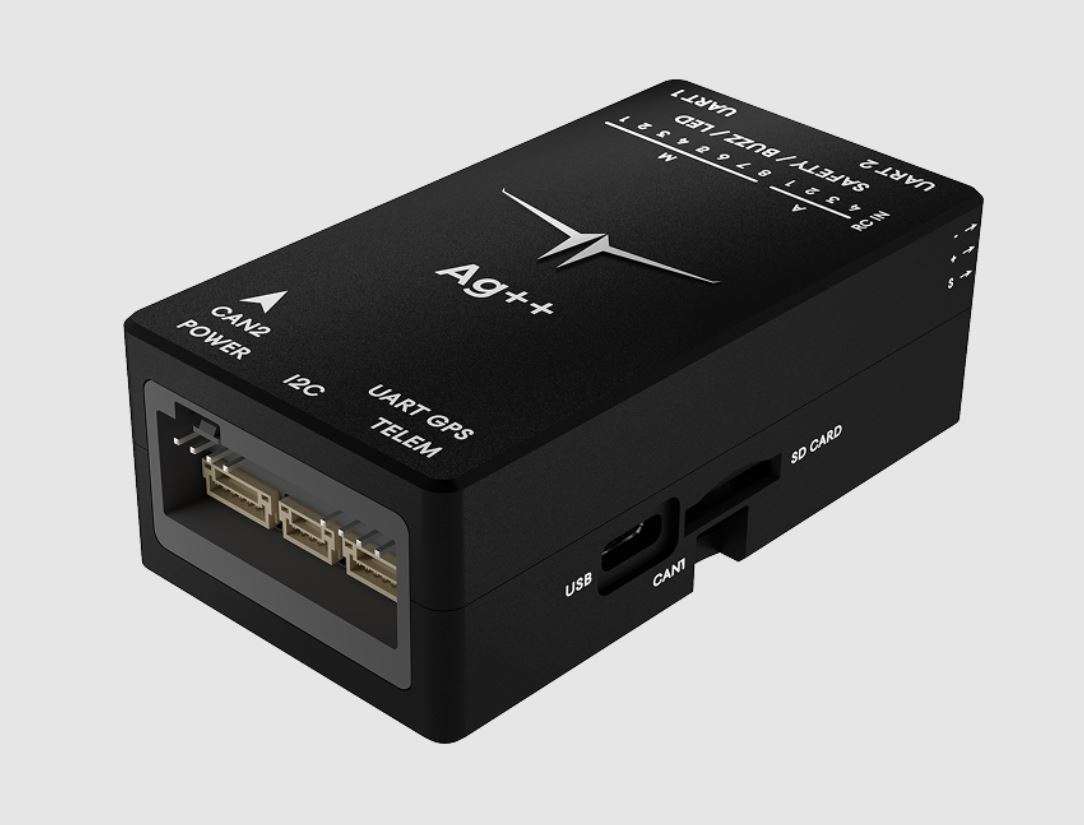

Name: Ag++ Flight Controller With Software Stack (For hexa copter Agri drone with free Aero GCS GREEN software) in India
SKU: 8536809
Availability: InStock

Ag++ Flight Controller With Software Stack (For hexa copter Agri drone with free Aero GCS GREEN software) in India

+18% GST

1. Ag++ Flight Controller Ag++ is powered by a high-performance main processor built on a 32-bit architecture. It runs at high speed.

2. For hexa copter Agri drone with free Aero GCS GREEN free software

Three month Free subscription of cloud software ( Aero GCS enterprise)

For hexa copter Agri drone with free Aero GCS GREEN free software.

15 in stock

Description

Hardware Specification

Main Processor	STM32H7 Series 32-Bit ARM Cortex-M7 Core, 480 MHz
Coprocessor	STM32F1 Series 32-Bit ARM Cortex-M3 Core, 72MHz
Supported RC Signals	PPM/SBUS
Connectors	Standard And Widely Used Connectors
Sensors	Triple IMU System
Sensors Details	IMU1 (Isolated) MEMS High-Impact Applications IMU3 (Isolated) High Vibration Robustness MAG 1 (Isolated) High-Precision, Ultra-Low Noise MAG2 + MAG3 (External) Supports External Magnetometer BARO1 (Isolated) High-Resolution Barometric Pressure Sensor BARO1 (On Board) High-Resolution Barometric Pressure Sensor
Supported Firmware	Custom Firmware by PDRL
Supported Vehicle Types	Survey Drone Spraying Drone

Specification

Weight	80 gm
Chassis Material	Precision ABS melded
Size	89 x 45 x 30 mm
Operating Temperature	-40°C to +85°C
Motor PWM I/Os	8
Auxiliary PWM / Digital I/Os	4
Dedicated Telemetry Interface	1
Number Of GPS Supported	2
Auxiliary UARTs	2
I2C Interface	1
CAN Interface	2
Power and Current, Voltage Measurement Interface	1
RCIN Interface	1
USB Interface	1
SDCARD Interface	1
Safety Switch, Buzzer And LED Interface	1

Package Contents :
Power module pm02 with cable
USB type C cable
Telemetry cable
Buzzer safety switch led connector cable
Software Included in Delivery Package :
The following software are included as part of a unit delivery package :
AeroGCS GREEN (Android) one License
AeroGCS Config (Desktop) one License
AeroGCS Enterprise SaaS subscription for three months.

Here3/ Here3+ GPS is not included and needs to be bought separately.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Ag++ Flight Controller With Software Stack (For hexa copter Agri drone with free Aero GCS GREEN software) in India”

You must be logged in to post a review.

Shipping & Delivery

Normal Shipping-

We will ship your order within the 1-2 business day of confirmation of order.

We mostly use Fedex ,Delhivery, Xpressbees courier for shipping it's cover almost pincodes of india .

Remote Location-

In this case remote area we can ship your order using India Post.

So shop hassle freeeee!!!!!!!!!!!!!!!!!!!!!

Specifications

CAN-Based Front And Back Obstacle Avoidance Radars
Provides Precise Terrain-Following Capabilities
Ag++ offers 8 PWM outputs for motors
4 auxiliary PWM/GPIO outputs
2 CAN buses, 3 UART ports
Dedicated R/C inputs for PPM and S

Supported Software & Hardware

Software Support :
The following software are be supported :
AeroGCS GREEN (Android)
AeroGCS Config (Desktop)
AeroGCS Enterprise (Web)
AeroGCS Orange (Desktop)

Supported External Sensors :
The following software are be supported :
CAN HUB-12 JIYI
H30 Altimeter JIYI (CAN protocol)
R21 Radar JIYI (CAN protocol)
GPS Here 3+ Holybro
PM02 V3 Power Module Holybro
Hobbywing Motors
Remote Controllers: T12 and MK15
