Livox Mid-360 (Line-16), v1.2 Laser Detection Rangefinder (1.5m Cable) in India

Original price was: ₹135,000.00.Current price is: ₹128,699.00. +18% GST

Quick Overview

Model: Livox Mid-360 (Line-16)
Laser Wavelength: 905 nm
Detection Range: 40 m (10% reflectivity), 70 m (80% reflectivity)
Field of View: 360° horizontal, -7° to 52° vertical
Range Precision: ≤ 2 cm at 10 m
Angular Precision: < 0.15°
Point Rate: 200,000 points/s
Frame Rate: 10 Hz

2 in stock

Compare

Add to wishlist

SKU: 3452535 Categories: Arduino Sensors &Modules, Drone Kits, Electronics Items

Description

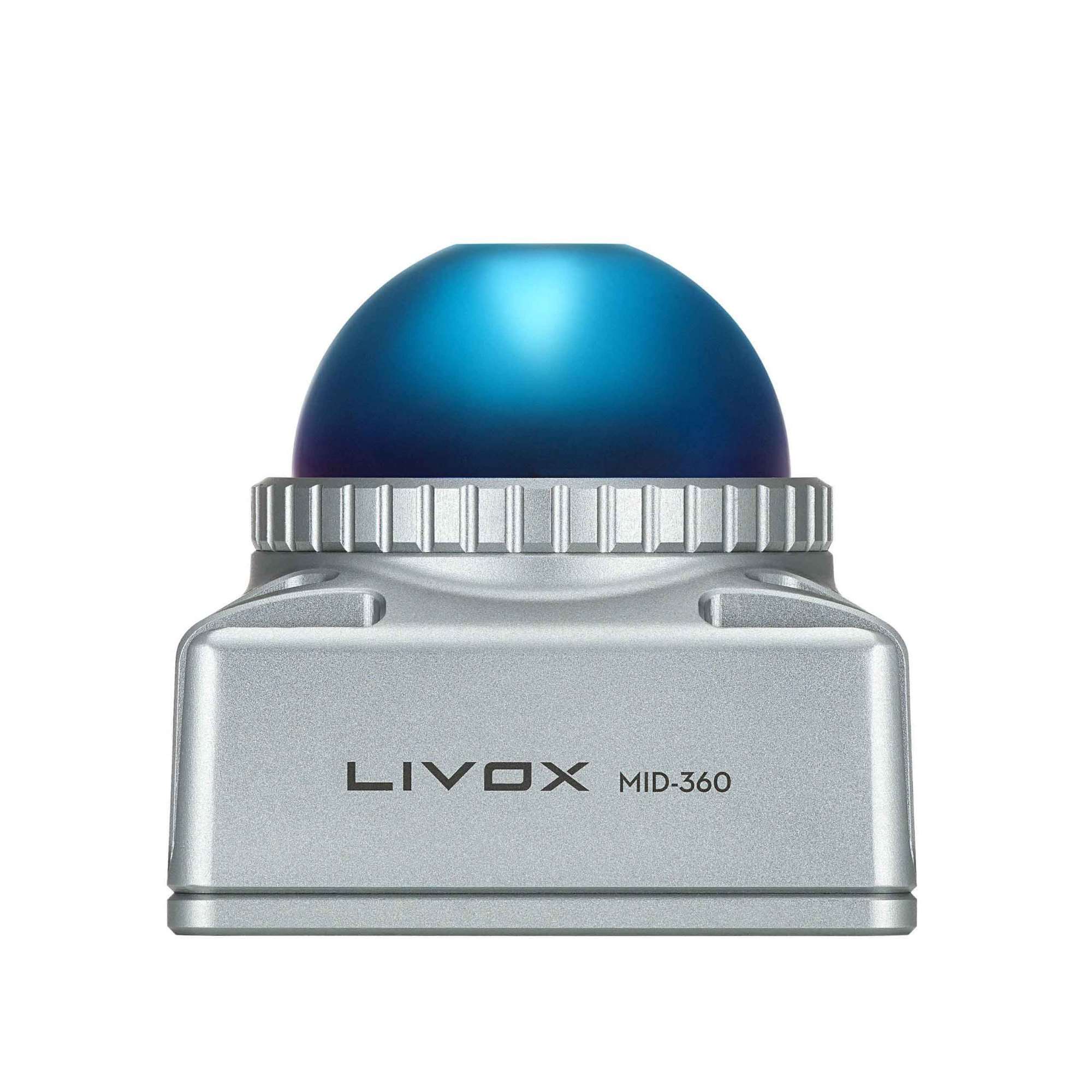

The Livox Mid-360 is a high-performance LiDAR sensor designed for a variety of applications, providing precise 360° environmental scanning. With a laser wavelength of 905 nm and an impressive range precision of ≤ 2 cm at 10 meters, the Mid-360 delivers high-quality data at an outstanding point rate of 200,000 points/s.

livox mid

Note: For more technical details datasheet is attached.

Useful Links:

Features:

360° FOV: Full horizontal coverage and vertical range from -7° to 52°.
Detection Range: 40 m at 10% reflectivity, 70 m at 80% reflectivity.
Laser Wavelength: 905 nm for precise laser detection.
Range Precision: ≤ 2 cm at 10 m and ≤ 3 cm at 0.2 m.
Angular Precision: < 0.15° for accurate angular measurements.
Point Rate: 200,000 points/s (first return).
Frame Rate: 10 Hz for continuous data capture.
IMU: Built-in ICM40609 IMU for enhanced stability.
Data Port: 100 BASE-TX Ethernet for fast data transfer.
Laser Safety: Class 1 laser, eye-safe (IEC60825-1:2014).
Power Consumption: 6.5 W (average) for efficient energy use.
Operating Temperature: Works in temperatures from -4°F to 131°F (-20°C to 55°C).
IP Rating: IP67 for dust and water resistance.
False Alarm Rate: Less than 0.01% at 100 klx.
Self-Heating Mode: Automatically activates in low temperatures to ensure functionality.
