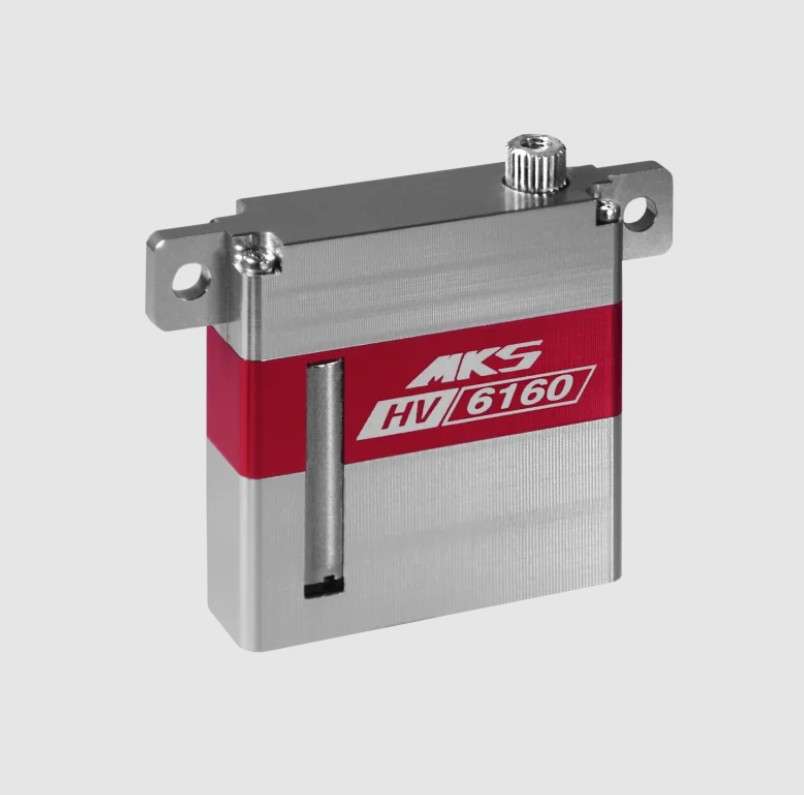

MKS HV6160 Servo

SERVO SPECIFICATION

• Torque (kg-cm) 11.7(4.8V) / 14.5(6.0V) / 17.0(7.4V) / 18.6(8.2V)
• Torque (oz-in) 162.4 (4.8V) / 201.3(6.0V) / 236.1(7.4V) / 258.3(8.2V)
• Speed 0.230 s (4.8V) / 0.182 s (6.0V) / 0.147 s (7.4V) / 0.133 s (8.2V)
• Stall Current (at locked load) 1.56A (4.8V) / 1.9A (6.0V) / 2.2A (7.4V) / 2.5 (8.2V)
• Working Voltage 4.8V ~ 8.4V DC Volt
• Working Frequency 1520μs / 333Hz
• Dead Band 0.001 ms (Default)
• Bearing 2*Oil-retaining Bearing
• Gear Metal Alloy Gear
• Motor Coreless Motor
