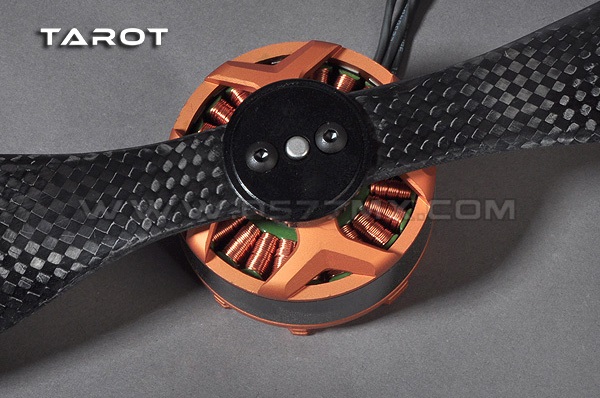

Tarot 4114/320KV Brushless Motor (TL100B08-02)

Product Details
Brand: Tarot
Weight: 250.00 g

This is a medium size motor optimized for Tarot 1555 to 1655 propellers with 6S LiPo, reliable and efficient for 800 to 1000 size multi-rotors, generating 1.3kg to 1.5kg of thrust using Tarot 1555 to 1655 propellers at 50% throttle.

Product Descriptions:
• 4114/320KV Brushless Motor is designed for multi-copter
• CNC processed, smooth surface and well-balanced
• Brand-new turbofan cover, which provide good heat dissipation effect
• Rotor is made by neodymium iron boron, and stator is made by Epoxy resin, motor is well-balanced from factory, which solves vibration issue a lot. Motor shaft is alloy steel applied.
• Motor upper and lower cover are special bearing applied, which has advantages such as low frictional torque, low power consumption, impact resistance, strong radial support.

Specifications:
• M2.5×6 stepped screw x3
• 4114-11KV320 x1

Product Parameters

This is a medium size motor optimized for Tarot 1555 to 1655 propellers with 6S LiPo, reliable and efficient for 800 to 1000 size multi-rotors, generating 1.3kg to 1.5kg of thrust using Tarot 1555 to 1655 propellers at 50% throttle.

Product Descriptions:
• 4114/320KV Brushless Motor is designed for multi-copter
• CNC processed, smooth surface and well-balanced
• Brand-new turbofan cover, which provide good heat dissipation effect
• Rotor is made by neodymium iron boron, and stator is made by Epoxy resin, motor is well-balanced from factory, which solves vibration issue a lot. Motor shaft is alloy steel applied.
• Motor upper and lower cover are special bearing applied, which has advantages such as low frictional torque, low power consumption, impact resistance, strong radial support.

Specifications:
• M2.5×6 stepped screw x3
• 4114-11KV320 x1

Product Parameters:
Motor peripheral diameter: 46.00mm
Stator diameter: 41.0 mm
Stator end thickness: 14.0 mm
Stator end: 24N
Motor number of poles: 22P
Diameter: 0.31mm
Per volt speed: 320 RPM/Volt
Of 22.2V empty annexed current: 0.5 Amps
Motor internal resistance: 126 mΩ
Motor Weight: 148 Grams
Gear shaft mounting diameter: ¢ 4.0 mm
Motor Length: 32.0 mm
Motor shaft total length: 37.0 mm
